Kit assembly for an electric boat engine

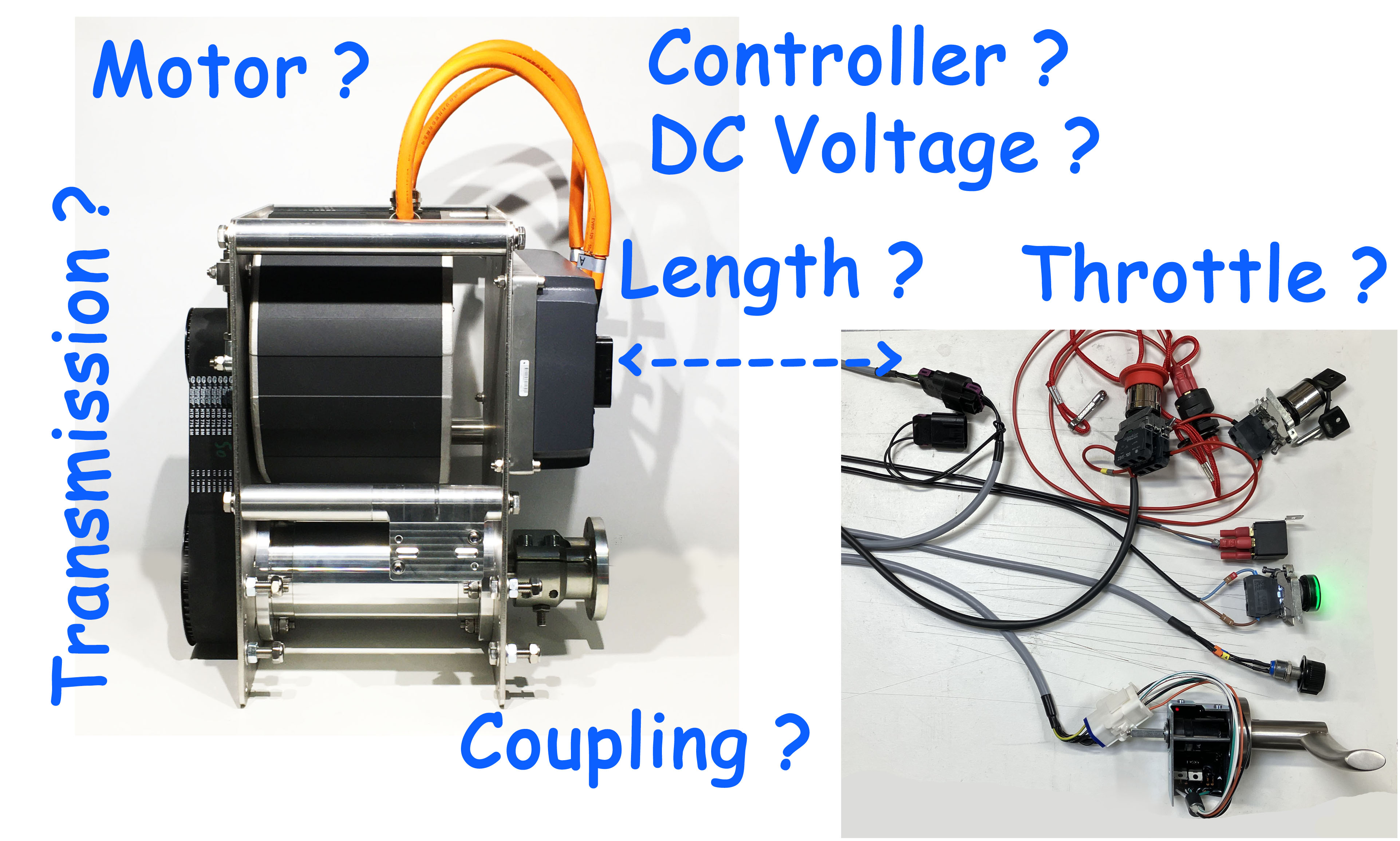

By assembling kits of materials, Kit Elec Shop allows the realization of an electric motor-controller unit to electrify the propeller propulsion of boats. To do this, select the following items:

  1. a boat electrification kit : 48V ME1719 6kW or 48V ME1306 10kW or 48V ME1917 10kW or 48V ME1304 10kW or 48V ME1302 10kW or 48V ME1616 15kW;
  2. a transmission support kit for boat: E=220mm AM=182mm 30mm shaft stainless steel or E=220mm AM=222mm 30mm shaft stainless steel;
  3. a transmission kit with a 1/2 ratio (22-44) with HTD belt or a 28-56 ratio 50mm width or a 22-56 ratio or a 22-64 ratio or a 22-72 ratio or a 22-80 ratio;
  4. a shaft coupling pliers for a 30mm shaft TP005 or a chain coupling for shaft from 19 to 30mm or in 35 or 40mm diameter or in 45 or 50mm diameter.
  5. More photos with the ME1306 are available here.

    More photos with the ME1616 are available here.

    More photos with the ME1302 SLIM version are available here.

    Kit assembly for an electric boat engine / Assemblage de kits pour une motorisation électrique de bateau
    Kit assembly for an electric boat engine / Assemblage de kits pour une motorisation électrique de bateau

    Assemblage de kits pour une motorisation électrique de bateau

    En assemblant des kits de matériels, Kit Elec Shop permet la réalisation d'un bloc moteur-variateur électrique pour électrifier la propulsion par hélice des bateaux.

    Pour cela, il faut sélectionner les éléments suivant :

    1. un kit électrification bateau 48V ME1719 6kW ou 48V ME1306 10kW ou 48V ME1917 10kW ou 48V ME1304 10kW ou 48V ME1302 10kW ou 48V ME1616 15kW;
    2. un kit support de transmission pour bateau : E=220mm AM=182mm arbre de 30mm inox ou E=220mm AM=222mm arbre de 30mm inox;
    3. un kit de transmission de rapport 1/2 (22-44) avec courroie HTD ou un rapport 28-56 largeur 50mm ou un rapport 22-56 ou un rapport 22-64 ou un rapport 22-72 ou un rapport 22-80;
    4. un Tourteau à pince arbre de 30mm TP005 ou un accouplement à chaîne pour arbre de 19 à 30mm ou de 35 ou 40mm de diamètre ou de 45 ou 50mm de diamètre.


    Other solutions :

    By assembling kits of materials, Kit Elec Shop allows the realization of an electric motor-controller unit to electrify the propeller propulsion of boats. To do this, select the following items:

    1. a boat electrification kit : 48V ME1719 6kW or 48V ME1306 10kW or 48V ME1304 10kW or 48V ME1616 15kW;
    2. a transmission support kit for boat: E110 182mm 30mm shaft stainless steel or E220 182mm 30mm shaft stainless steel or E330 222mm 30mm shaft stainless steel or V3-40 182mm 40mm shaft raw steel;
    3. a transmission kit with a 1/2 ratio (22-44) with HTD belt or a 22-56 ratio or a 22-64 ratio or a 22-72 ratio or a 22-80 ratio;
    4. a 30mm diameter drive shaft in 500mm length or 1000mm length (1 meter).
    5. a chain coupling for shaft from 19 to 30mm or in 35 or 40mm diameter or in 45 or 50mm diameter.
    6. More photos are available here.

      Kit assembly for an electric boat engine / Assemblage de kits pour une motorisation électrique de bateau
      Kit assembly for an electric boat engine / Assemblage de kits pour une motorisation électrique de bateau

      Assemblage de kits pour une motorisation électrique de bateau

      En assemblant des kits de matériels, Kit Elec Shop permet la réalisation d'un bloc moteur-variateur électrique pour électrifier la propulsion par hélice des bateaux.

      Pour cela, il faut sélectionner les éléments suivant :

      1. un kit électrification bateau 48V ME1719 6kW ou 48V ME1306 10kW ou 48V ME1304 10kW ou 48V ME1616 15kW;
      2. un kit support de transmission pour bateau : E110 182mm arbre de 30mm inox ou E220 182mm arbre de 30mm inox ou E330 222mm arbre de 30mm inox ou V3-40 182mm arbre de 40mm;
      3. un kit de transmission de rapport 1/2 (22-44) avec courroie HTD ou un rapport 22-56 ou un rapport 22-64 ou un rapport 22-72 ou un rapport 22-80;
      4. un arbre de transmission de 30mm de diamètre en longueur 500mm ou en longueur 1000mm (1 mètre).
      5. un accouplement à chaîne pour arbre de 19 à 30mm ou de 35 ou 40mm de diamètre ou de 45 ou 50mm de diamètre.
